What Is the Hologic InSight 2 Deep “C” Carriage Assembly — New Style (ASY-04864)?
Product: Hologic InSight 2 Deep “C” Carriage Assembly — New Style
Part Number: ASY-04864

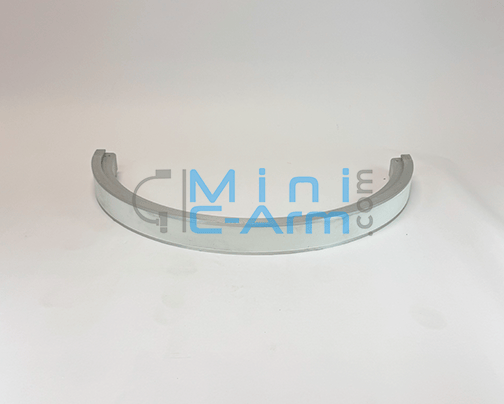

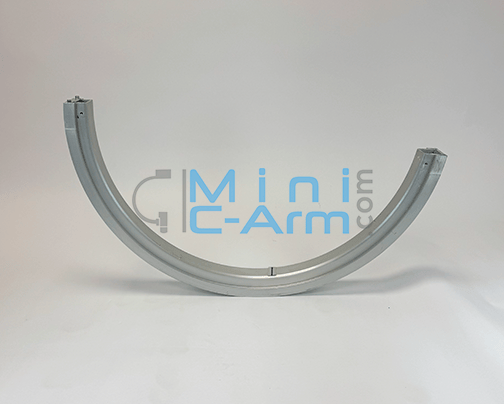

The Hologic InSight 2 Deep “C” Carriage Assembly (ASY-04864) is the updated structural assembly that carries and supports the C-arm on newer Hologic InSight 2 mini C-arms. The carriage is the mechanical framework that holds the C-arm in position, guides its orbital rotation, and transmits positioning forces from the operator controls to the C-arm head and detector. The Deep “C” designation refers to an updated carriage geometry introduced on later InSight 2 production units that provides an increased depth of C-arm travel — allowing greater clearance around the patient or procedure table during imaging. This new-style carriage is not interchangeable with the older-style carriage (ASY-00162) used on earlier InSight 2 units and all InSight 1 units. Carriage replacement is a major mechanical service procedure. Call (800) 643-2998 with your serial number to confirm which carriage style applies to your unit before ordering.
Compatible Systems
Part ASY-04864 is the new-style Deep “C” carriage, compatible with newer InSight 2 units only. Earlier InSight 2 units and all InSight 1 units use the standard C carriage — see
ASY-00162. Installing the wrong carriage style will result in an incorrect fit. Call
(800) 643-2998 with your serial number to confirm which version applies to your unit before ordering.
Why Source This Part From Minicarm.com?
✓ Mini C-Arm Parts SpecialistsMinicarm.com stocks parts for Hologic, Orthoscan, and OEC mini C-arms. One source for everything your system needs, backed by over 65 years of imaging experience.
✓ 30-Day Warranty on Every PartEvery part ships with a 30-day industry-standard warranty. If there's an issue, we make it right — no runaround.
✓ Same-Day Shipping AvailableCall before 5PM EST and we'll do our best to get your part out the same day.
✓ 4.9 Stars on Google (60 Reviews)Medical imaging professionals across the country trust Minicarm.com for parts, service, and support.
Need Installation Help?
Deep C carriage assembly replacement is a major mechanical service procedure involving the primary structural framework of the C-arm. Our certified field service engineers are available nationwide for on-site installation and repair. Learn more about our service options or call (800) 643-2998 to schedule.
Order Information📦 All parts are sold based on exchange.🔄 Return Policy: All sales are final. Parts are non-returnable.🛡️ Warranty: 30-Day Industry-Standard Warranty❓ Questions? Contact us at minicarm.com/contact-us or call (800) 643-2998. Frequently Asked Questions
What is the difference between the Deep “C” carriage and the standard C carriage?+
The Deep “C” carriage (
ASY-04864) features an updated geometry with increased C-arm depth compared to the standard carriage (
ASY-00162). This provides greater clearance around the patient or procedure table during imaging, which can improve access for certain extremity procedures. The two versions are not physically interchangeable — always confirm your unit's serial number before ordering to ensure you receive the correct carriage style for your system.
What are the signs that the carriage assembly needs replacement?+
Common signs include the C-arm drifting from its set position during imaging, rough or binding movement during orbital rotation, excessive play or looseness that affects positioning precision, unusual noise during C-arm movement, and visible physical damage to the carriage frame or bearing surfaces. Any condition that prevents the C-arm from holding its position reliably during fluoroscopy should be evaluated by a qualified service engineer promptly.
Can Minicarm.com install this part for me?+
Yes. Our certified field service engineers are available nationwide for on-site installation and repair. Call
(800) 643-2998 or visit
minicarm.com/service to schedule.
What does sold on exchange mean?+
Exchange means you return your defective core unit when you receive the replacement. This helps keep refurbished parts available and costs reasonable. Our team will provide return instructions with your order.
How quickly can I get this part shipped?+
Same-day shipping is available on in-stock parts when ordered before 5PM EST. Call (800) 643-2998 to confirm availability and arrange shipping.
