What Is the Hologic Insight C-Arm Mounting Plate — Left (ASY-04724)?
Product: C-Arm Mounting Plate — Left
Part Number: ASY-04724

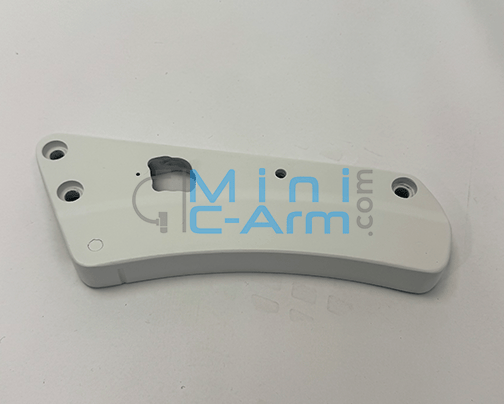

The Hologic Insight C-Arm Mounting Plate — Left (ASY-04724) is the OEM left-side plate of the mounting assembly that secures the C-arm to the flex arm on the Hologic Insight mini C-arm. This plate is part of the two-piece clamping assembly that holds the C-arm at the desired height and angle.
The most common reason this plate needs to be replaced is locking knob failure. When the locking knob is overtightened or stressed, the knob itself can shear off — leaving the bolt or screw stub seized inside the threaded hole of the mounting plate. Once the screw is stripped or stuck in that hole, the plate can no longer be properly secured and must be replaced. Note: this part does not include the locking knob (FAB-04128). If you also need a replacement locking knob, it is available separately as FAB-04128 — call (800) 643-2998 to order both together.

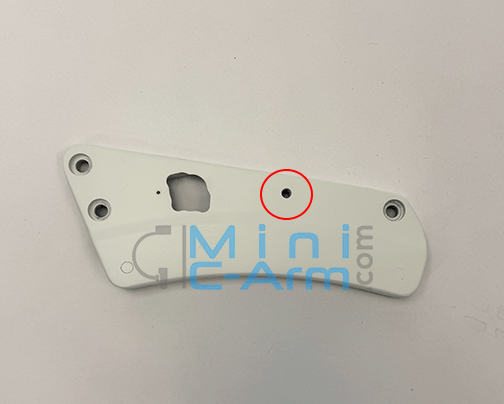

See the product image above — the red circle marks the threaded screw hole where the locking knob fastens into the plate. This is the hole that gets damaged when the knob shears off and the stub becomes seized, making plate replacement necessary.
Compatible Systems
⚠ This part does not include the locking knob. The mounting plate (ASY-04724) is sold separately from the locking knob (FAB-04128). If your knob sheared off and left a seized screw in the plate, you will need this plate. Call (800) 643-2998 to order the locking knob (FAB-04128) at the same time.
Why Source This Part From Minicarm.com?
✓ Mini C-Arm SpecialistsMinicarm.com is exclusively focused on mini C-arm sales, service, and parts — including Hologic Fluoroscan systems. You're dealing with specialists, not a general equipment reseller.
✓ 30-Day Warranty on Every PartEvery part ships with a 30-day industry-standard warranty. If there's an issue, we make it right — no runaround.
✓ Same-Day Shipping AvailableCall before 5PM EST and we'll do our best to get your part out the same day.
✓ 4.9 Stars on Google (60 Reviews)Medical imaging professionals across the country trust Minicarm.com for parts, service, and support.
Need Installation Help?
Our certified field service engineers are available to install this part anywhere in the United States. Learn more about our service options or call (800) 643-2998 to schedule.
Order Information📦 All parts are sold based on exchange.🔄 Return Policy: All sales are final. Parts are non-returnable.🛡️ Warranty: 30-Day Industry-Standard Warranty❓ Questions? Contact us at minicarm.com/contact-us or call (800) 643-2998. Frequently Asked Questions
Why do most people need to replace this mounting plate?+
The most common cause is locking knob failure. When the locking knob (FAB-04128) is overtightened or worn, it can shear off and leave the bolt stub seized inside the threaded hole of the mounting plate. Once the screw is stripped or stuck in the threaded hole on the plate (the center hole shown in the product image), the assembly can no longer be properly secured and the plate must be replaced. Attempting to drill out a seized screw typically damages the plate further, making replacement the only viable fix.
Does this part include the locking knob?+
No. ASY-04724 is the mounting plate only. The locking knob is a separate part — FAB-04128. Call (800) 643-2998 to order both at the same time.
Is there a right-side mounting plate as well?+
Yes. This is the left-side plate only. The mounting assembly is a two-piece design with a matching right-side plate. Call (800) 643-2998 if you need the right-side plate and we can identify the correct part number for you.
Is this sold on exchange?+
Yes — all parts at Minicarm.com are sold on exchange. Return instructions are included with your order.
Can you install this for me?+
Yes. Our certified field service engineers are available nationwide. Call (800) 643-2998 or visit
minicarm.com/service to schedule.
How quickly can I get this part shipped?+
Same-day shipping is available on in-stock parts when ordered before 5PM EST. Call (800) 643-2998 to confirm availability and arrange shipping.
