What Is the Hologic InSight 1 & 2 “C” Carriage Assembly — Older Style (ASY-00162)?

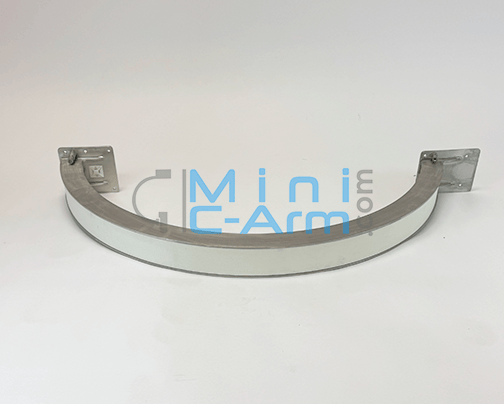

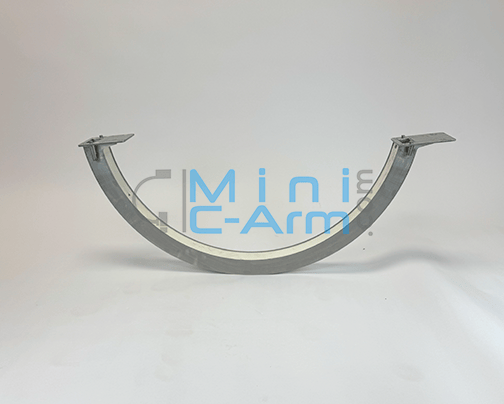

Product: Hologic InSight 1 & 2 “C” Carriage Assembly — Older Style
Part Number: ASY-00162
The Hologic InSight “C” Carriage Assembly (ASY-00162) is the structural assembly that carries and supports the C-arm on the Hologic InSight 1 and older-style InSight 2 mini C-arms. The carriage is the mechanical framework that holds the C-arm in position, guides its orbital rotation, and transmits positioning forces from the operator controls to the C-arm head and detector. It is one of the most structurally significant assemblies on the unit — wear or damage to the carriage can result in C-arm drift, inability to hold position, rough or binding orbital movement, and instability during imaging. This is the older-style carriage configuration compatible with the InSight 1 and earlier InSight 2 units. Newer InSight 2 units use the updated Deep “C” Carriage Assembly (ASY-04864). Carriage replacement is a major mechanical service procedure. Call (800) 643-2998 with your serial number to confirm which carriage style applies to your unit before ordering.
Compatible Systems
Part ASY-00162 is the older-style C carriage, compatible with the InSight 1 and older InSight 2 units only. Newer InSight 2 units use the Deep “C” Carriage Assembly — see
ASY-04864. Installing the wrong carriage style will result in an incorrect fit. Call
(800) 643-2998 with your serial number to confirm which version applies to your unit before ordering.
Why Source This Part From Minicarm.com?
✓ Mini C-Arm Parts SpecialistsMinicarm.com stocks parts for Hologic, Orthoscan, and OEC mini C-arms. One source for everything your system needs, backed by over 65 years of imaging experience.
✓ 30-Day Warranty on Every PartEvery part ships with a 30-day industry-standard warranty. If there's an issue, we make it right — no runaround.
✓ Same-Day Shipping AvailableCall before 5PM EST and we'll do our best to get your part out the same day.
✓ 4.9 Stars on Google (60 Reviews)Medical imaging professionals across the country trust Minicarm.com for parts, service, and support.
Need Installation Help?
C carriage assembly replacement is a major mechanical service procedure involving the primary structural framework of the C-arm. Our certified field service engineers are available nationwide for on-site installation and repair. Learn more about our service options or call (800) 643-2998 to schedule.
Order Information📦 All parts are sold based on exchange.🔄 Return Policy: All sales are final. Parts are non-returnable.🛡️ Warranty: 30-Day Industry-Standard Warranty❓ Questions? Contact us at minicarm.com/contact-us or call (800) 643-2998. Frequently Asked Questions
What are the signs that the C carriage assembly needs replacement?+
Common signs include the C-arm drifting from its set position during imaging, rough or binding movement during orbital rotation, excessive play or looseness in the carriage that affects positioning precision, unusual noise during C-arm movement, and visible physical damage to the carriage frame or bearing surfaces. Any condition that prevents the C-arm from holding its position reliably during fluoroscopy should be evaluated by a qualified service engineer promptly.
How do I know if my InSight 2 uses the older-style carriage (ASY-00162) or the newer Deep C carriage (ASY-04864)?+
The carriage style is determined by the serial number and manufacturing date of your InSight 2. Earlier InSight 2 units use the standard C carriage (
ASY-00162), while later units use the updated Deep “C” configuration (
ASY-04864). Call
(800) 643-2998 with your serial number and our team will confirm which version applies to your unit before you order.
Can Minicarm.com install this part for me?+
Yes. Our certified field service engineers are available nationwide for on-site installation and repair. Call
(800) 643-2998 or visit
minicarm.com/service to schedule.
What does sold on exchange mean?+
Exchange means you return your defective core unit when you receive the replacement. This helps keep refurbished parts available and costs reasonable. Our team will provide return instructions with your order.
How quickly can I get this part shipped?+
Same-day shipping is available on in-stock parts when ordered before 5PM EST. Call (800) 643-2998 to confirm availability and arrange shipping.
