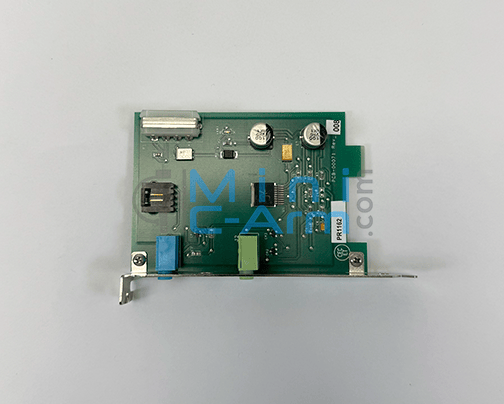

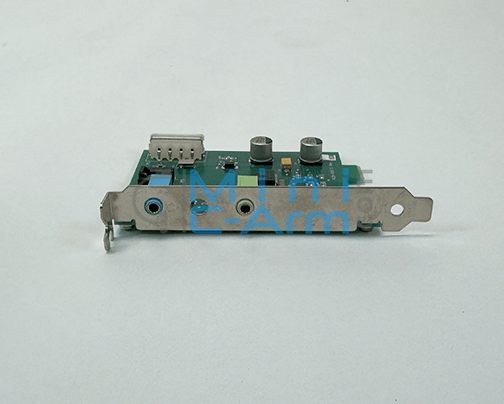

What Is the Hologic InSight FD Audio Amplifier Board (PCB-01012 / PCB-00071)?
Product: Hologic InSight FD Audio Amplifier Board
Part Number: PCB-01012 / PCB-00071
The Hologic InSight FD Audio Amplifier Board (PCB-01012 / PCB-00071) is the internal PCB responsible for driving the speaker on the Hologic InSight FD and InSight FD Flex mini C-arms. The audio amplifier board powers the audible tones the system produces during fluoroscopy exposure, system startup, and alert conditions. These tones serve as an important clinical cue — confirming active X-ray exposure and alerting staff to system events without requiring them to keep eyes on the monitor at all times. When this board fails, the system produces no audio output, intermittent beeps, or distorted sound. The system will continue to function otherwise, but the absence of audible exposure feedback is a clinical workflow concern and may be flagged during regulatory inspections. Compatible with the Hologic InSight FD and InSight FD Flex only — not the InSight 2, InSight 1, or Fluoroscan Premier Encore. Call (800) 643-2998 with your serial number to confirm fit before ordering.
Compatible Systems
Part PCB-01012 / PCB-00071 is specific to the Hologic InSight FD and InSight FD Flex only. The InSight 2, InSight 1, and Fluoroscan Premier Encore use different audio board configurations. Call (800) 643-2998 with your serial number to confirm fit before ordering.
Why Source This Part From Minicarm.com?
✓ Mini C-Arm Parts SpecialistsMinicarm.com stocks parts for Hologic, Orthoscan, and OEC mini C-arms. One source for everything your system needs, backed by over 65 years of imaging experience.
✓ 30-Day Warranty on Every PartEvery part ships with a 30-day industry-standard warranty. If there's an issue, we make it right — no runaround.
✓ Same-Day Shipping AvailableCall before 5PM EST and we'll do our best to get your part out the same day.
✓ 4.9 Stars on Google (60 Reviews)Medical imaging professionals across the country trust Minicarm.com for parts, service, and support.
Need Installation Help?
Audio amplifier board replacement is an internal PCB swap that should be performed by a certified field service engineer. Our technicians are available nationwide for on-site replacement and post-install verification. Learn more about our service options or call (800) 643-2998 to schedule.
Order Information📦 All parts are sold based on exchange.🔄 Return Policy: All sales are final. Parts are non-returnable.🛡️ Warranty: 30-Day Industry-Standard Warranty❓ Questions? Contact us at minicarm.com/contact-us or call (800) 643-2998. Frequently Asked Questions
What symptoms indicate a failed audio amplifier board on the Hologic InSight FD?+
The most common indicators are no audible tone during fluoroscopy exposure, no system startup beep, intermittent audio that cuts in and out during use, and distorted or unusually quiet speaker output. The system will otherwise continue to function normally — imaging, dose, and controls are unaffected. However, the absence of an audible exposure tone is a clinical workflow concern and may be cited during regulatory or accreditation inspections. Call (800) 643-2998 to confirm the fault before ordering.
Why does a mini C-arm need an audible exposure tone?+
Audible exposure tones serve as a real-time alert to clinical staff that X-ray is actively being generated. This allows everyone in the room to be aware of active radiation without needing to monitor the display. Many accreditation bodies and state radiation control programs require that fluoroscopic equipment produce an audible signal during X-ray exposure. A silent system may be flagged during inspections even if it is otherwise fully functional.
Can Minicarm.com install this part for me?+
Yes. Our certified field service engineers are available nationwide for on-site installation and repair. Call
(800) 643-2998 or visit
minicarm.com/service to schedule.
What does sold on exchange mean?+
Exchange means you return your defective core unit when you receive the replacement. This helps keep refurbished parts available and costs reasonable. Our team will provide return instructions with your order.
How quickly can I get this part shipped?+
Same-day shipping is available on in-stock parts when ordered before 5PM EST. Call (800) 643-2998 to confirm availability and arrange shipping.
