What Is the Orthoscan TAU 2020 Flat Panel Detector — 20×20 cm (235-0011)?
Product: Orthoscan Flat Detector, TAU (20×20)
Part Number: 235-0011
Detector Size: 20×20 cm
Model Number: CFP 2022

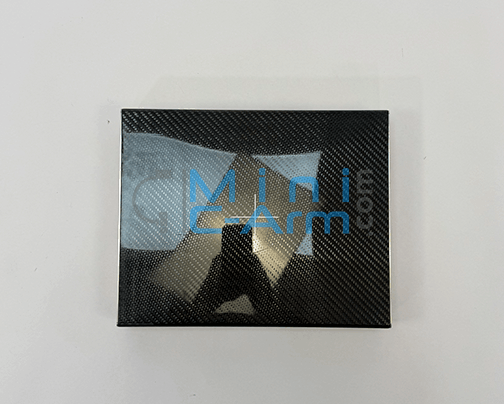

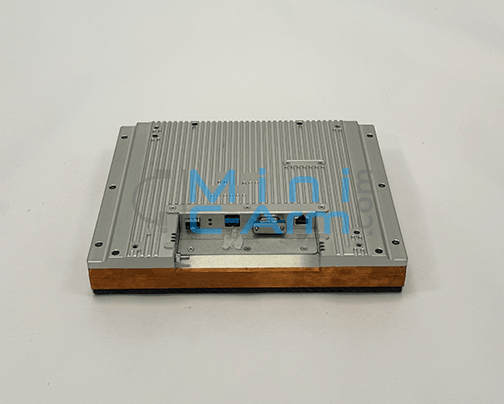

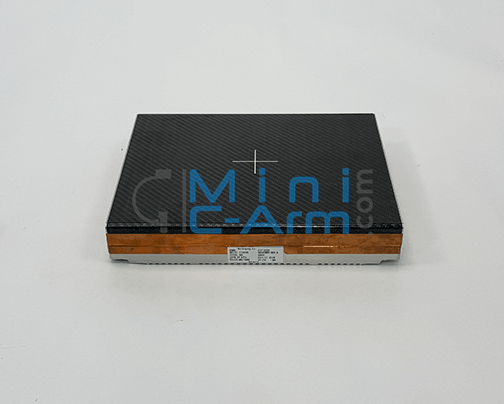

The Orthoscan TAU 2020 Flat Panel Detector (235-0011) is the 20×20 cm amorphous silicon flat panel detector for the Orthoscan TAU 2020 mini C-arm. The TAU model numbering directly encodes the detector dimensions — the TAU 2020 uses this 20×20 cm detector exclusively. At 20×20 cm, this is the largest field of view available across the TAU family, making the TAU 2020 the preferred platform for procedures requiring coverage of larger anatomical areas. This is the imaging core of the system, converting X-ray energy into the digital fluoroscopy image displayed on the monitor. Common reasons for replacement include complete loss of image, persistent artifacts or dead pixel clusters that cannot be corrected through calibration, and physical damage from impact. This is the highest-value component on the TAU 2020 — call (800) 643-2998 with your serial number to confirm compatibility and pricing before ordering.
Compatible Systems
The TAU detector size maps directly to the model number — this 20×20 cm detector (235-0011) fits the TAU 2020 only. If you have a TAU 1512, you need the 15×12 cm detector instead. If you have a TAU 1515, you need the 15×15 cm detector instead. Call (800) 643-2998 with your serial number to confirm the correct detector before ordering.
TAU Flat Detector Size Guide
Why Source This Part From Minicarm.com?
✓ Founded by the Founder of OrthoscanChristopher Bacon co-founded Orthoscan, Inc. and has deep familiarity with the TAU platform's flat panel detector architecture. You're buying from the experts.
✓ 30-Day Warranty on Every PartEvery part ships with a 30-day industry-standard warranty. If there's an issue, we make it right — no runaround.
✓ Same-Day Shipping AvailableCall before 5PM EST and we'll do our best to get your part out the same day.
✓ 4.9 Stars on Google (60 Reviews)Medical imaging professionals across the country trust Minicarm.com for parts, service, and support.
Need Installation Help?
Flat panel detector replacement is a high-value, precision procedure that requires proper calibration after installation. Our certified field service engineers are available nationwide. Learn more about our service options or call (800) 643-2998 to schedule.
Order Information📦 All parts are sold based on exchange.🔄 Return Policy: All sales are final. Parts are non-returnable.🛡️ Warranty: 30-Day Industry-Standard Warranty❓ Questions? Contact us at minicarm.com/contact-us or call (800) 643-2998. Frequently Asked Questions
What symptoms indicate the flat panel detector needs to be replaced?+
Common indicators include complete loss of image with the system otherwise functioning normally, persistent image artifacts or a pattern of dead pixels that cannot be resolved through detector calibration, and physical damage such as a cracked detector panel from impact. Because some image quality issues can also be caused by the detector power supply, umbilical cable, or CCA board, call (800) 643-2998 to help isolate the root cause before committing to a detector replacement.
Does the flat detector require calibration after replacement?+
Yes. After installing a replacement flat panel detector, the system requires detector calibration to establish proper gain and offset correction maps for accurate imaging. This is a required post-installation step and should be performed by a qualified technician. Our certified service engineers handle full detector swap and calibration — call (800) 643-2998 to schedule.

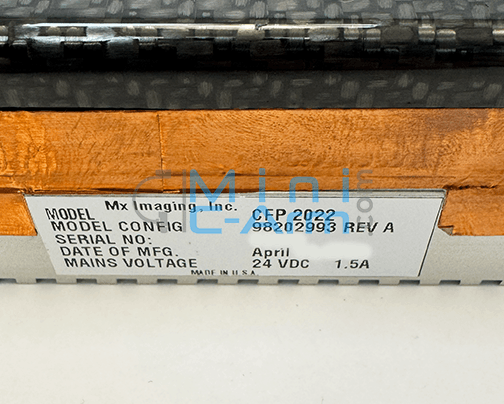

What does the model number CFP 2022 refer to?+
CFP 2022 is the model number printed on the flat panel detector hardware itself. If you are cross-referencing a detector you have in hand and see CFP 2022 on the label, this is the correct part — Orthoscan part number 235-0011.
Can Minicarm.com install this part for me?+
Yes. Our certified field service engineers are available nationwide for on-site installation and repair. Call
(800) 643-2998 or visit
minicarm.com/service to schedule.
Is this sold on exchange?+
Yes. All parts are sold on an exchange basis. A core return is required. Call (800) 643-2998 for details.
How quickly can I get this part shipped?+
Same-day shipping is available on in-stock parts when ordered before 5PM EST. Call (800) 643-2998 to confirm availability and arrange shipping.
